  Special rubber plate for computer laser engraving
  Monochrome rubber plate
  Compound rubber plate
  Dichromatic rubber plate
  Cloth reinforced oil resistant rubber plate
  Double-sided tape for printing industry
  Effect drawing of rubber plate for computer laser engraving
  Rubber products
  Rubber plate breakdown
　　Characteristics: oil-resistant, acid/alkali-resistant, wearable, even planeness, good absorbency, exquisite and pliable texture, smooth engraving, long service life, clear printing graphics and letters, strong sense of hierarchy. They are actually ideal plate making materials.
Can be one-side or double-side roughened and provide special specification depends on customer’s demands. Mailing or consigning for customers is offered. Users are wholeheartedly welcomed to contact business.
The company has been accredited for ISO9001:2000 international certification and applicable standard of the products is Q/320581BHW001-2006.
　Special rubber plate for computer laser engraving
　　Common spec sheet:

(L×W) mm Thickness mm
 580×820 4-9
2300×650
2300×950

Key technical parameters: (refer to only testing standard for 45 degree products)
　　1. Hardness (Shore): 45±5
　　2. Rupture hardness Mp≥4.5
　　3. Permanent set at rupture≤30
　　4. Elongation at rupture %≥450

Product characteristics:
　　1. Oil resistant, acidproof/alkaliproof, wearable, long service life;
　　2. Even planeness, good absorbency and elaborate printing;
　　3. Exquisite and pliable texture, smooth engraving and even planeness;
　　4. Outstanding printing effect, strong sense of hierarchy, can replace certain pliable plates;
　　5. Avoid as practicable as possible forme deformation, applicable especially to print small letters and patterns;
　　6. Excellent elasticity shall compensate uneven cardboard and ensure consistent printing quality on the spot.
　　Name: special engraving sheet material for single-layer computer laser engraving
　　Application: carton printing and computer laser engraving
　　Model: (Shore) hardness: 38-45 degree
　　Name: special engraving sheet material for double-layer computer laser engraving
　　Application: carton printing and computer laser engraving
　　Model: (Shore) hardness: 38-45 degree

  ∴TOP∴


　　Name: monochrome rubber plate
　　Application: carton printing
　　Model: (Shore) hardness 42-75 degree
　　Common spec sheet:

Sheet material (L×W) mm Width of coiled material mm Thickness mm
500×400 1200×650
550 2-9.6
580×820 1400×1100
650
600×450 2300×650
950
700×500 2300×950
1100
Key technical parameters: (refer to only testing standard for 65 degree products)
　　1. Hardness (Shore): 65±5
　　2. Rupture hardness Mp≥4.5
　　3. Permanent set at rupture≤30
　　4. Elongation at rupture %≥450

Product characteristics:
　　1. Oil resistant, acidproof/alkaliproof, wearable, long service life;
　　2. Even planeness, good absorbency and elaborate printing;
　　3. Exquisite and pliable texture, smooth engraving and even planeness;
　　4. Outstanding printing effect, strong sense of hierarchy, can replace certain pliable plates;
　　5. Avoid as practicable as possible forme deformation, applicable especially to print small letters and patterns;
　　6. Excellent elasticity shall compensate uneven cardboard and ensure consistent printing quality on the spot.
  ∴TOP∴


　　Name: dichromatic rubber plate
　　Application: plastic woven printing
　　Model: (Shore) hardness 65-75 degree
　　Common spec sheet:
Key technical parameters: (refer to only testing standard for 65 degree products)
Description Red finishing Back prime
Shore hardness 65±5 65±5
Rupture hardness Mp≥ 3.0 2.0
Permanent set at rupture≤ 25 20
Elongation at rupture %≥ 450 260

Product characteristics:
　　1. Oil resistant, acidproof/alkaliproof, wearable, long service life;
　　2. Even planeness, good absorbency and elaborate printing;
　　3. Exquisite and pliable texture, smooth engraving and even planeness;
　　4. Avoid as practicable as possible forme deformation, applicable especially to print small letters and patterns.


　　Name: cloth reinforced oil resistant rubber plate
　　Application: plastic woven printing
　　Model: (Shore) hardness 65 degree
　　Common spec sheet:

Sheet material (L×W) mm Width of coiled material mm Thickness mm
580×820
550 4-7
1200×650
650
Product characteristics:
　　1. High content of oil resistant material, strong oil resistant and wearability, big printing quantity;
　　2. Even planeness, good absorbency and elaborate printing;
　　3. Exquisite and pliable texture, smooth engraving and even planeness;
　　4. Avoid as practicable as possible forme deformation, applicable especially to print small letters and patterns.
  ∴TOP∴

　　Name: compound rubber plate
　　Application: carton printing
　　Model: (Shore) hardness 42-75 degree
Common spec sheet:

Sheet material (L×W) mm Width of coiled material mm Thickness mm
700×500 550 4-7
1200×650 650
2300×650 1100
2300×950 　

Key technical parameters: (refer to only testing standard for 45 degree products)
　　1. Hardness (Shore): 45±5
　　2. Rupture hardness Mp≥4.5
　　3. Permanent set at rupture≤30
　　4. Elongation at rupture %≥450

Product characteristics:
　　1. Oil resistant, acidproof/alkaliproof, wearable, long service life;
　　2. Even planeness, good absorbency and elaborate printing;
　　3. Exquisite and pliable texture, smooth engraving and even planeness;
　　4. Outstanding printing effect, strong sense of hierarchy, can replace certain pliable plates;
　　5. Avoid as practicable as possible forme deformation, applicable especially to print small letters and patterns;
　　6. Excellent elasticity shall compensate uneven cardboard and ensure consistent printing quality on the spot.
  ∴TOP∴

Double-sided tape for printing industry
Spec: 340mm×3m
Packing: paper 28 rolls/case, gauze 40 rolls/case
Characteristics: good adhesiveness, repeated use and quick advantages. Can used to affix and fix rubber forme of various thicknesses.
Application: carton printing, plastic woven printing industry.
Before using, the adhesive face shall be kept clear, clean and dry. Before storage, it shall not be affected by moisture, heating and direct sunshine.

  ∴TOP∴

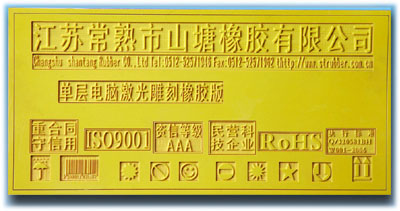

Effect drawing of single-layer computer laser printing and engraving rubber plate
Effect drawing of double-layer computer laser printing and engraving rubber plate

  ∴TOP∴
Rubber products

Our company has such rubber products as rubber bridge bearings of various specs and rubber water stop of various specs and different demands.

Characteristics: excellent elasticity, wearable, compression resistant, tear resistant, aging resistant and acidproof/alkaliproof.

Products have been used in leak and seepage resistant, shock absorption and buffering of bridges and tunnels.
Spec sheet of rubber water stop

Code Product spec (mm) Product section
E1 290×10×R25
E2 300×6×R13
E11 300×8×R18
E12 280×8×R13
E13 280×9×R13.5
E14 270×15×R30×Φ35
E16 300×8×R20×6
E18 250×10×12.5×Φ10
E21 230×6×16
E31 250×10×R20Φ30
E41 290×10×R25
C1 300×10×R30
C2 220×10×R30
C3 230×10×R40
P1 90×15×R20
P2 120×15×R20
P3 140×15×R20
P4 45×6×Φ18
P5 55×10×Φ20
  ∴TOP∴

.Spec sheet for ShantangTM series printing and engraving rubber plates
1. Monochrome rubber plate (sheet material category, computer laser engraving) (Shore) hardness 38-75 degree

Spec (mm) L×W

Spec (mm) L×W

Spec (mm) L×W

Spec (mm) L×W

500×400×2

600×450×5

 820×580×5 2300×650×4

500×400×2.6

600×450×6

 820×580×6 2300×650×5

500×400×3

600×450×7

 820×580×7

2300×650×6

500×400×4

700×500×2

1200×650×4

2300×650×7

500×400×5

700×500×3

1200×650×5

2300×950×4

500×400×6

700×500×4

1200×650×6

2300×950×5

500×400×7

700×500×5

1200×650×7

2300×950×6

600×450×2

700×500×6

1400×1100×4

2300×950×7

600×450×2.6

700×500×7

1400×1100×5

 　

600×450×3

820×580×3

1400×1100×6

 　

600×450×4

820×580×4

1400×1100×7

 　
2. Double-layer compound rubber plate (sheet material category, computer laser engraving) (Shore) hardness 38-75 degree. Finishing available are 1.5 1.6 1.8 2.0 mm
Spec (mm) L×W Spec (mm) L×W Spec (mm) L×W Spec (mm) L×W
700×500×4 820×580×6 1400×1100×4 2300×650×6
700×500×5 820×580×7 1400×1100×5 2300×650×7
700×500×6 1200×650×4 1400×1100×6 2300×950×4
700×500×7 1200×650×5 1400×1100×7 2300×950×5
820×580×4 1200×650×6 2300×650×4 2300×950×6
820×580×5 1200×650×7 2300×650×5 2300×950×7
3. Monochrome rubber plate (coiled material category) (Shore) hardness 42-75 degree
Spec (mm) L×W Spec (mm) L×W Spec (mm) L×W Spec (mm) L×W
W550×2 W650×3 W950×3 W1100×3
W550×2.6 W650×4 W950×4 W1100×4
W550×3 W650×5 W950×5 W1100×5
W550×4 W650×6 W950×6 W1100×6
W550×5 W650×7 W950×7 W1100×7
W550×6
W550×7
4. Double-layer compound rubber plate (coiled material category) (Shore) hardness 42-75 degree
Spec (mm) L×W Spec (mm) L×W Spec (mm) L×W
W550×4 W650×4 W950×4
W550×4 W650×5 W950×5
W550×4 W650×6 W950×6
W550×4 W650×7 W950×7
5. Dichromatic oil resistant rubber plate (Shore) hardness 65-75 degree (oil resistant level: common, medium, high and special high for cloth reinforced one)
Spec (mm) L×W Spec (mm) L×W Spec (mm) L×W
550×700 550 4-10
580×820 650
1200×650
2300×650
2300×950
6. Machining products of special specification, one-sided or double-sided coarse and/or fine roughening technology.
